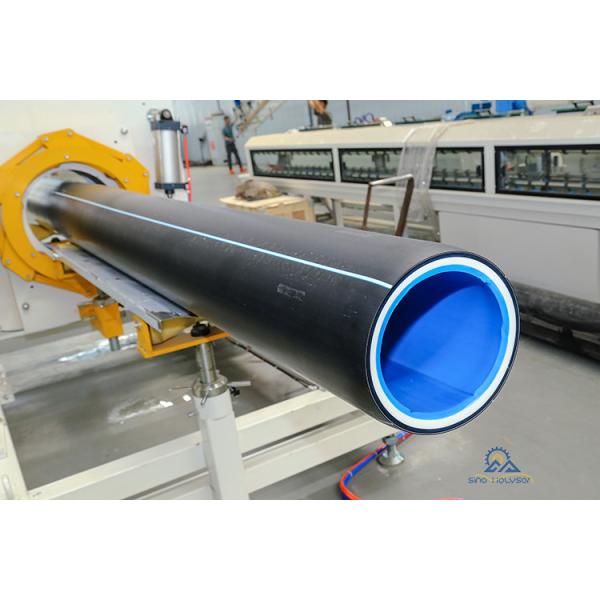

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Name: HSE7538 75250mm HDPE Pipe Extrusion Production Line Machine For Sale
Brand: SINO-HOLYSON
Price: 60000 USD

China HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale wholesale

Brand Name : SINO-HOLYSON

Model Number : HSE-75/38

Certification : CE ISO9001

Place of Origin : QINGDAO

MOQ : 1 set

Price : $ 60000/set

Payment Terms : L/C, T/T

Supply Ability : 500sets/year

Delivery Time : 45 work days

Packaging Details : plastic base packaging

Voltage : 380V/50HZ

Power : 110kw

Extruder Model : HSE-75/38

Pipe Size : φ 75-250 mm

Capacity : 400-600 kg/h

Gear Box : Transcyko

Control System : PLC Control

Warranty : 1 Year

Contact Now

HSE-75/38 HDPE Pipe Extrusion Production Line

Diameter:75-250mm

General Introduction:

HSE-75/38 HDPE Pipe Extrusion Production Line

This machine is mainly designed for manufacturing HDPE/PP Pipes, which mainly used in irrigation, water supply area. The extruder can process PP/HDPE granules(Both virgin and Recycled, even with chalk-filled composite).

The mounted mould on this line is 75-250mm, full set of mould will include every detailed sized mandrel and sizing sleeve. The whole production line mechanical designing max. 400-600kg/h.

MOLD Design: Diameter:φ75-250mm, customized according to the Sample

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

TWO DIFFERENT MODELS

There are totally two different models for your choice based on diameter.

Please match your sample size, choose a right model machine

Model	HSJ-65/33	HSE-75/38
Driving Motor(kw)	30	110
Output(kg/h)	45-80	400-600
Diameter(mm)	20-63	75-250

Product Paramenters:

Main Components of a full plant

The following machine units composed one production line.

Only Joecky Extruders are at your optional choice.

Model	HSE-75/38 HDPE Pipe Making Machine	Quantity
1	HSE-75/38 Single Screw Extruder	1 set
2	Pipe Mould + Die Head (φ75-250 mm)	1 set
3	Vacuum Sizing Cooling Water Tank	1 set
4	Electric Control System(PLC Smart Panel Optional)	1 set
5	Spraying Cooling Water Tank	2 sets
6	Double Claw Traction Machine	1 set
7	Non-dust Cutting Machine (Optional)	1 set
8	Pipe Stacker (Optional)	1 set
9	HSL-30w Fiber Laser Printer (Optional)	1 set
10	Two Station Winder Machine(Ø75-110mm)	1 set
10	Winder Machine(Ø110-250mm) (Optional)	1 set

Detail Images:

HSE-75/38 Single Screw Extruder

This is a Higher Efficiency designed extruder, which screw model is 75/38, installed with 110kw driving motor, for processing PP/HDPE granules specially. Gear reducer will use from top brand Guomao ZLYZ-225 model(which is the top brand in China), with a reliable connection, and higher efficiency distribution, the extruder output can reach upto400-600kg/hr.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Extrusion Die Head

Model: GM-250mm

Mould adopts alloy structural steel, which can greatly improve the strength of the parts. Under high temperature and high load,the mould still has good dimensional stability, ensure the service life of mould and pipe quality.

The surface of the runner is treated with nitride or hard chromium plating to ensure wear resistance and corrosion resistance and prolong the service life of the die.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Vacuum Sizing Cooling Water Tank

Vacuum Sizing Cooling Water Tank main role is to set the pipe diameter, shape, cooling and guaranteed the roundness of the pipes, installed with water channel system and a bypass loop access road. It also has an automatic monitoring system on water level and water temperature.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Double Claw Traction Machine

Also called by Two-Caterpillars Traction/ Haul off machine, with each crawler driven by frequency motor, can automatically change its working speed synchronous with the whole production line speed.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Non-dust Cutting Machine

The movement of length is controlled by cylinder; ensure that the longitudinal speed synchronized with the production line.

Horizontal cutting machine with circular saw blades cutting and lateral movement with chain-belt transmission, mobile speed can be adjusted, cutting a smooth.

Length measuring instrument is PLC micro-computer, error range ±1mm.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Pipe Stacker

Pipe stacking refers to the practice of temporarily storing lengths of pipe, such as those used in construction, oil and gas operations, or other industrial applications, by stacking them vertically.

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale

Winder Machine

HSE-75/38 75-250mm HDPE Pipe Extrusion Production Line Machine For Sale
